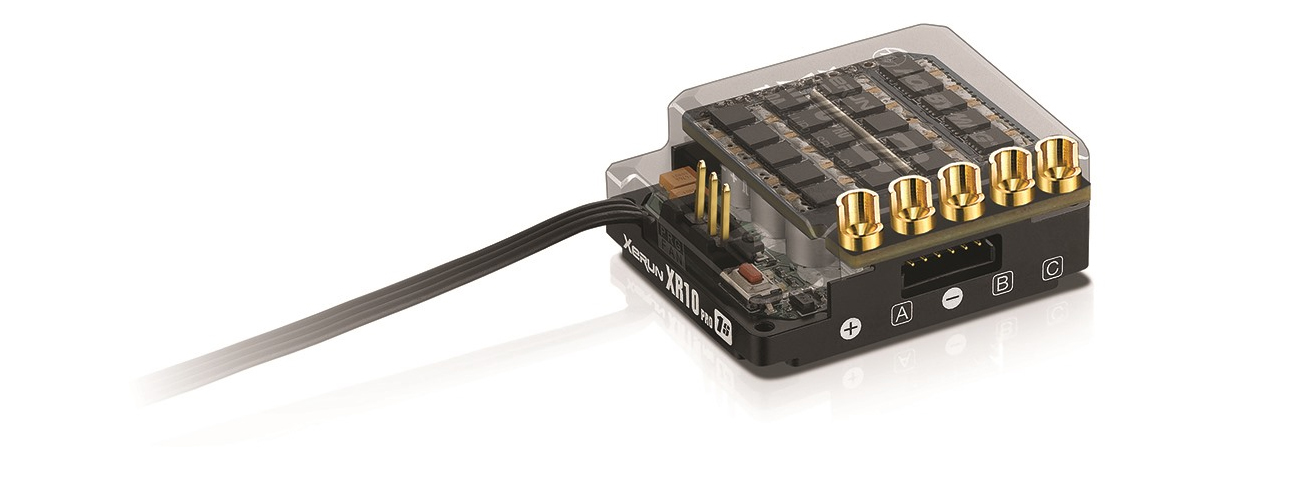

Hobbywing XeRun XR10 Pro 1S V4 ESC

Hobbywing
HW30112603
Bestel
  • Beschrijving

Special Design for 1/12th Scale Top Racing
Reliable hardware combined with great software (contains 5 common ready-to-use profiles) creates an ideal power solution to1/12th scale top touring car racing.

Small Size & Light Weight
Height of 15.9mm (6mm shorter than the previous V3.1 1S ESC) saves space and makes the installation convenient; weight of 35.6g (12g lighter than the previous V3.1 1S ESC) provides more weight margin when adjusting the balance of the chassis.

Super BEC
Internal BEC features booster circuitry can output the current/voltage of up to 6A/6V and power various servos without connecting any extra receiver battery.

Built-in Electronic Switch & Capacitor Module
The built-in electronic switch with a lifespan of over 50000 on/off cycles completely solves the problems like stuck reed, rusted contact points, and automatic shutdown conventional mechanical switches often have.The internal capacitor module saves space and makes the wiring simple and neat.



Programming/Upgrading/Data Reading Wirelessly
With Hobbywing’s "WiFi Express" module and iPhone or an Android phone (with the HOBBYWING WiFi Link software installed), the user can remotely program parameters, upgrade firmware and check relevant data of the ESC without leaving the control stand.

Adjustable Throttle & Brake PWM Frequencies
Independent and adjustable throttle & brake PWM frequencies guarantee precise and accurate throttle and brake control for all classes of competitions (esp. the Stock class).

Separate Programming/Fan Port
The separate PRG/FAN port on the ESC can power an external fan to maximize cooling performance or connect the ESC to a LCD program box or WiFi module for ESC programming.

Innovative Data-logging Function
This ESC features the data-logging function which can record the maximum ESC/motor temperature, RPM and etc. in real time and allows users to check those data via a LCD program box or WiFi module after each use.


Specifications
  • Scale: 1/12th
  • Brushed/Brushless: BL
  • Sensored/Sensorless: SD
  • Waterproof: No
  • Cont./Peak Current: 120A/830A
  • Input Voltage: 1S Lipo/3-4 Cell NiMH
  • BEC Output: Switch Mode: 6V@3A


Wires & Connectors

  • Input Wires:
    Red-12AWG-200mm*1 Black-12AWG-200mm*1
    Red-14AWG-200mm*1 Black-14AWG-200mm*1
  • Output Wires: Black-12AWG-200mm*3 Black-14AWG-200mm*3
  • Input Connectors: No
  • Output Connectors: No


ESC Programing via

  • SET Button on ESC: Not Supported
  • LED Program Box: Not Supported
  • LCD Program Box: Supported
  • WiFi Module: Supported
  • Program Port: Separate Program Port


Firmware

  • Firmware Upgrade: Supported


Size & Weight

  • Size: 37.5x31x15.9mm
  • Weight: 35.6g


Applications

  • Motors: SL BL Motors / SD BL Motors
  • Vehicles: 1/12th Touring Car
  • KV Rating/T Count: 1S LiPo: ≥3.0T(* ESC in Zero-timing/Blinky Mode)
