Goblin 500 Sport Combo White/Red

SAB Heli Division
  • Beschrijving

After the great success of Goblin 500, here the Goblin 500 Sport
The design totally changes to follow the family feeling with the Goblin 380.
Ability to use medium and full-size servos
2 sets of Main blades
2 sets of Tail blades
The structural plates are now made of a plastic material Zytel70G33L. This change ensures a reduction of 48 grams in weight.
Main gear CNC H0423 (aluminum/delrin) in the basic kit
New Swashplate with high quality spherical bearing
Landing gear with extra width
Boom obtained with different technology, 25 grams less
In additional other small details...
An important update that changes the whole model!

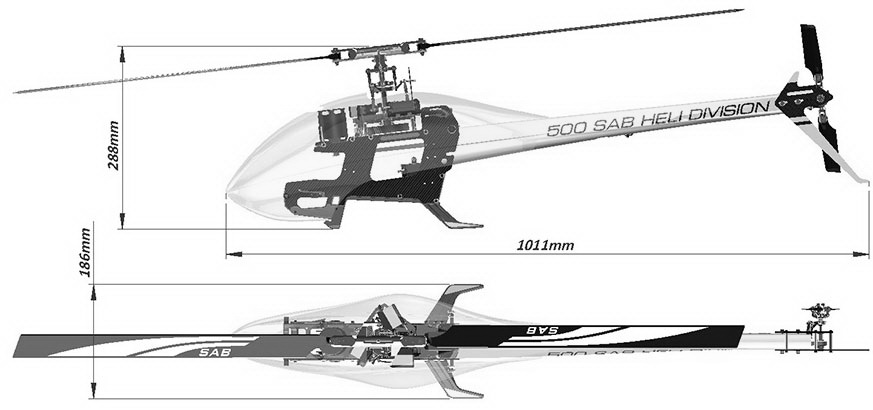

General Specifications:
Main rotor diameter:  1136 mm
Main blade length: 500mm
Tail blade length: 80 mm
Weight including electronics: 1880 g (excluding batteries).
18T motor pulley included

Electronic Specifications:
Cyclic Servos: Mid and Standard size (36 and 40 mm)
Tail Servo: Standards size 40mm
Typical speed controller: 100A
Maximum motor size: 52 mm diameter, 58 mm height
Flight Battery: 6S 3300/4500 mAh; Battery compartment: 50x54x180mm

Kit Includes:
18T motor pulley (other pulley sizes available)
2 battery trays
500 mm main blades (2 sets)
80 mm tail blades (2 sets)

The following motor pulleys are available:
16T Pulley (P/N 0215-16-S) Ratio 10.33:1
17T Pulley (P/N H0215-17-S) Ratio 9.72:1
18T Pulley (P/N H0215-18-S) Ratio 9.18:1
19T Pulley (P/N H0215-19-S) Ratio 8.7:1
20T Pulley (P/N H0215-20-S) Ratio 8.26:1
21T Pulley (P/N H0215-21-S) Ratio 7.87:1
22T Pulley (P/N H0215-22-S) Ratio 7.51:1
23T Pulley (P/N H0215-23-S) Ratio 7.19:1
24T Pulley (P/N H0215-24-S) Ratio 6.91:1
All these motor pulleys are for a 6 mm motor shaft. Each pulley includes an adapter for 5 mm motor shafts.
